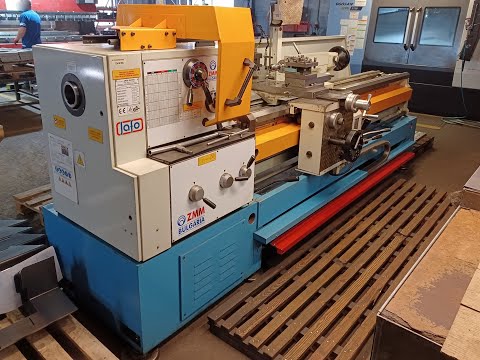

Universal Lathe ZMM SLIVEN CU 400M

Category Lathes ZMM SLIVEN ›
Manufacturer ZMM SLIVEN ›

ARCHIVED AD
Universal Lathe ZMM SLIVEN CU 400M was manufactured by the machine manufacturer ZMM SLIVEN. Machine ZMM SLIVEN CU 400M was built in 2015 year.

General data

Location Poland
region Dolnośląskie
Year of manufacture 2015
Warranty Without warranty
Technical condition Very good
Payment Before receipt
Transport The buyer organizes the transport at his own cost

Technical parameters

Maximum length of the turning 2000 mm
Turning diameter over bed (max) 440 mm
Turning diameter over cross slide (max) 240 mm
Turning diameter in gap 215 mm
Spindle bore 77 mm
Number of the rotary speed of the spindle 21 pcs
Minimum rotary speed of the spindle 20 1/min
Maximum rotary speed of the spindle 2000 1/min
Number of feed rates 120 pcs
Maximum longitudinal feed rate (Z-axis) 63.3 mm/s
Tailstock quill diameter 70 mm
Tailstock quill travel 230 mm
Length of the lathe 3600 mm
Width of the lathe 1250 mm
Height of the lathe 1400 mm
Weight of the lathe 2.9 t

Equipment

Digital readouts
Rapid feed
3-jaw chuck
Tailstock with a hydraulical quill
Metric threads
Modular threads
Inch threads
DP threads
Cooling system
