Eccentric Press WEINGARTEN AR 40

Category Mechanical Presses WEINGARTEN ›
Manufacturer WEINGARTEN ›

ARCHIVED AD

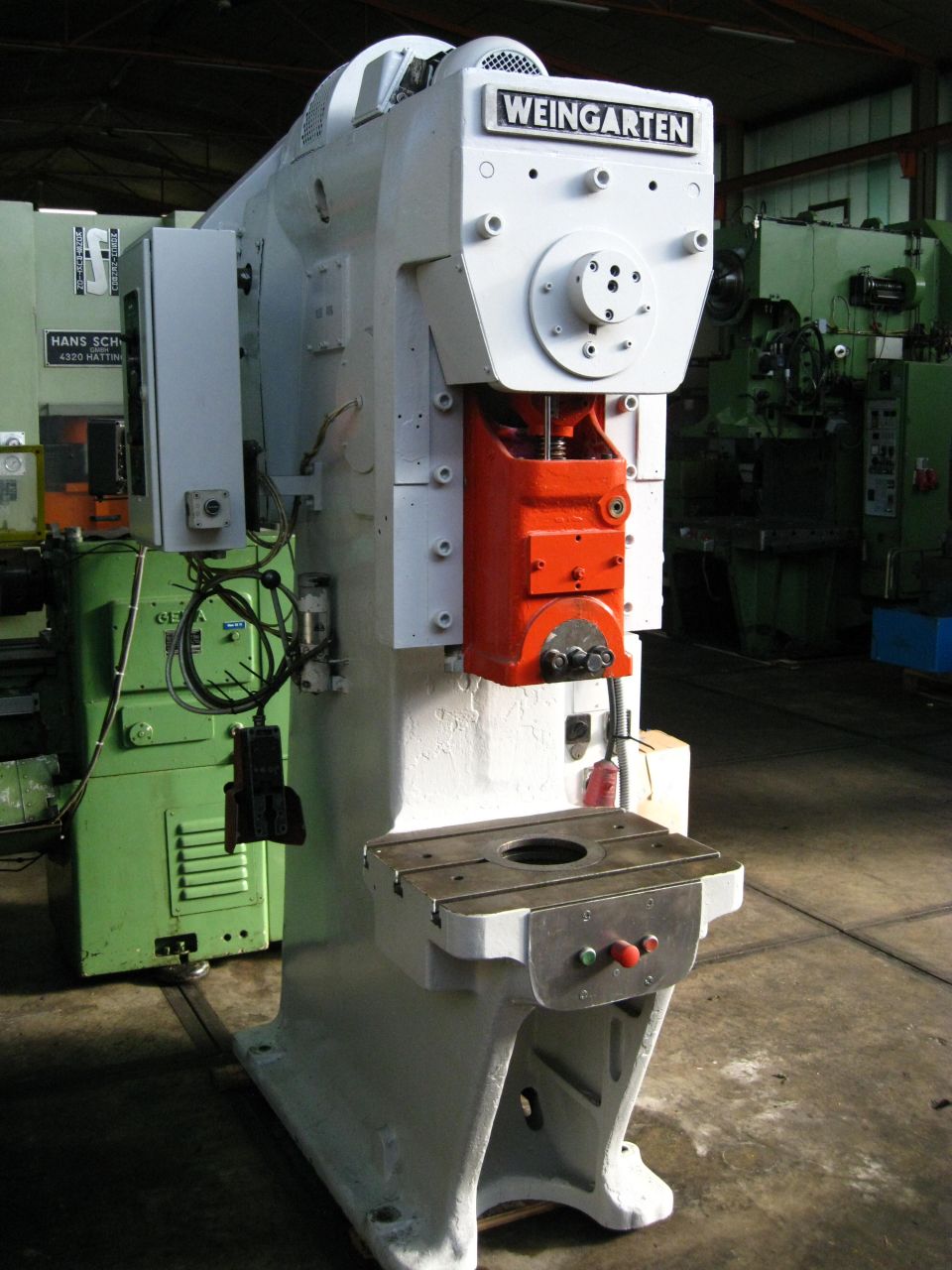

Eccentric Press WEINGARTEN AR 40 was manufactured by the machine manufacturer WEINGARTEN. Machine WEINGARTEN AR 40 was built in 1974 year.

General data

Location Germany
region Nordrhein-Westfalen
Year of manufacture 1974
Warranty Without warranty

Technical parameters

Maximum force (pressing) 40 t
Length of the bottom working table 550 mm
Width of the bottom working table 460 mm
Throat depth (distance from the frame to the slider axis) 230 mm
Maximum number of strokes per minute (manual work) 90 1/min
Minimum length of the slider stroke 8 mm
Maximum length of the slider stroke 88 mm
Adjustment of the slider 63 mm
Diameter of the hole in the bolster plate 155 mm
Machine height 2400 mm
Machine length 1050 mm
Machine width 1800 mm
Machine weight 3.3 t

Equipment

no data
