CNC Vertical Machining Center FEHLMANN PICOMAX 60-M
| Net price | 27112 USD |
| Local tax (VAT) | 23 % |
| Company name |
Maszyneria
Sławomir Konieczko |
| Address | Wita Stwosza 18/13 |
| City | Jelenia Góra |
| Post code | 58-560 |
| region | Dolnośląskie |
| Country | Poland |
| Telephone | +48 603510566 |
| Category | CNC Milling Machines and Machining Centers FEHLMANN › |
| Manufacturer | FEHLMANN › |

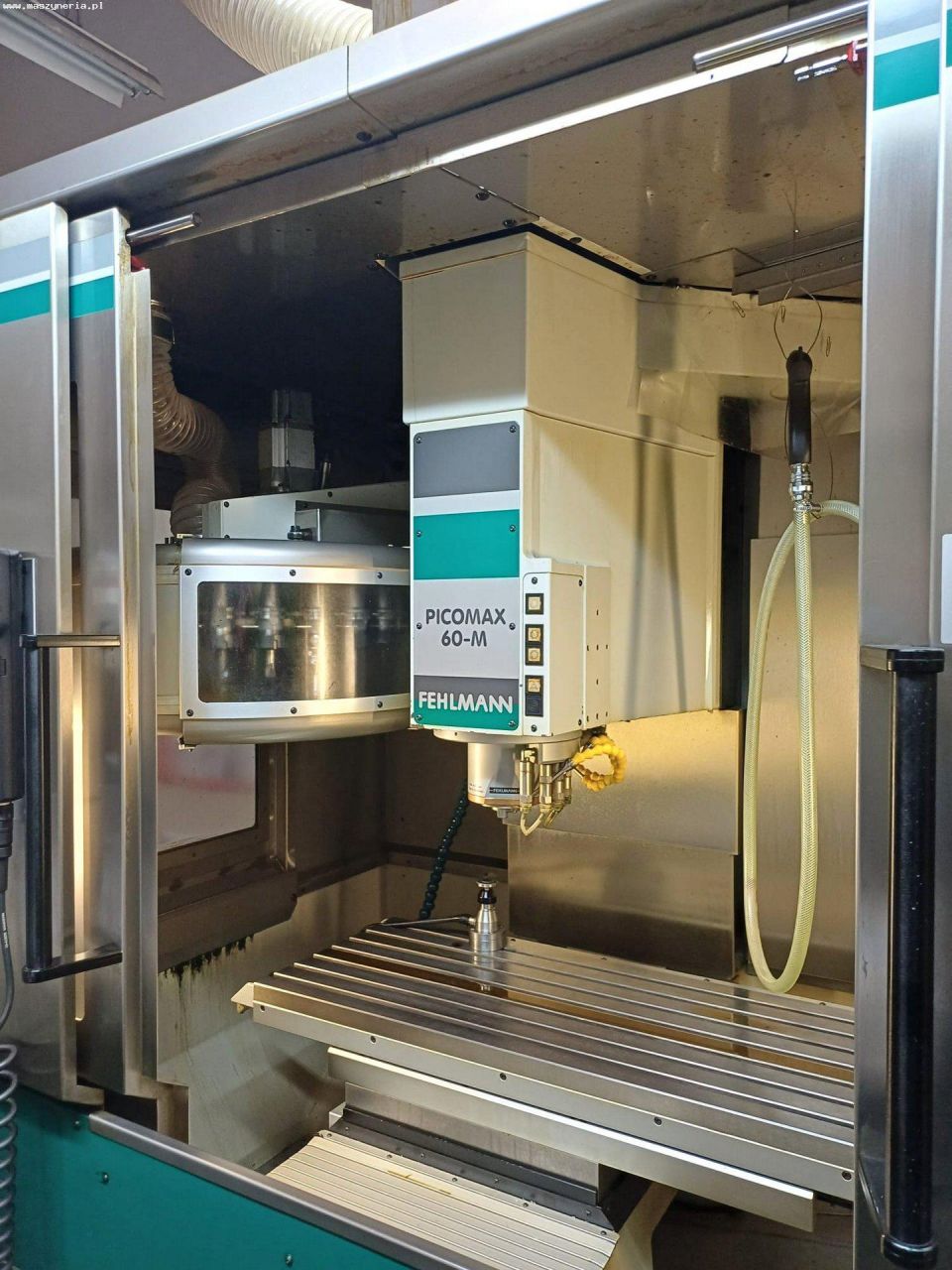

CNC Vertical Machining Center FEHLMANN PICOMAX 60-M was manufactured by the machine manufacturer FEHLMANN. Machine FEHLMANN PICOMAX 60-M was built in 2006 year.
General data | |
|---|---|
| Location | Poland |
| region | Dolnośląskie |
| Year of manufacture | 2006 |
| Warranty | Without warranty |
| Technical condition | Very good |
| Payment | Before receipt |
| Transport | The buyer organizes the transport at his own cost |
Technical parameters | |
|---|---|
| Length of the working table | 920 mm |
| Width of the working table | 380 mm |
| Maximum table load (evenly distributed) | 300 kg |
| Power of the spindle drive | 8.4 kW |
| Number of CNC controlled axles | 3 pcs |
| Number of tools in the magazine | 24 pcs |
| Minimum rotary speed of the vertical spindle | 50 1/min |
| Maximum rotary speed of the vertical spindle | 20000 1/min |
| Minimum distance of the spindle from the table | 84 mm |
| Maximum distance of the spindle from the table | 694 mm |
| Travel length X-axis (mechanical feed) | 505 mm |
| Travel length Y-axis (mechanical feed) | 355 mm |
| Travel length Z-axis (mechanical feed) | 610 mm |
| Maximum feed rate in X-axis | 333.3 mm/s |
| Maximum feed rate in Y-axis | 333.3 mm/s |
| Maximum feed rate in Z-axis | 333.3 mm/s |
| Number of T-slots in the table | 7 pcs |
| Machine weight | 3.4 t |
Equipment | |
|---|---|
| HEIDENHAIN iTNC 530 | |
