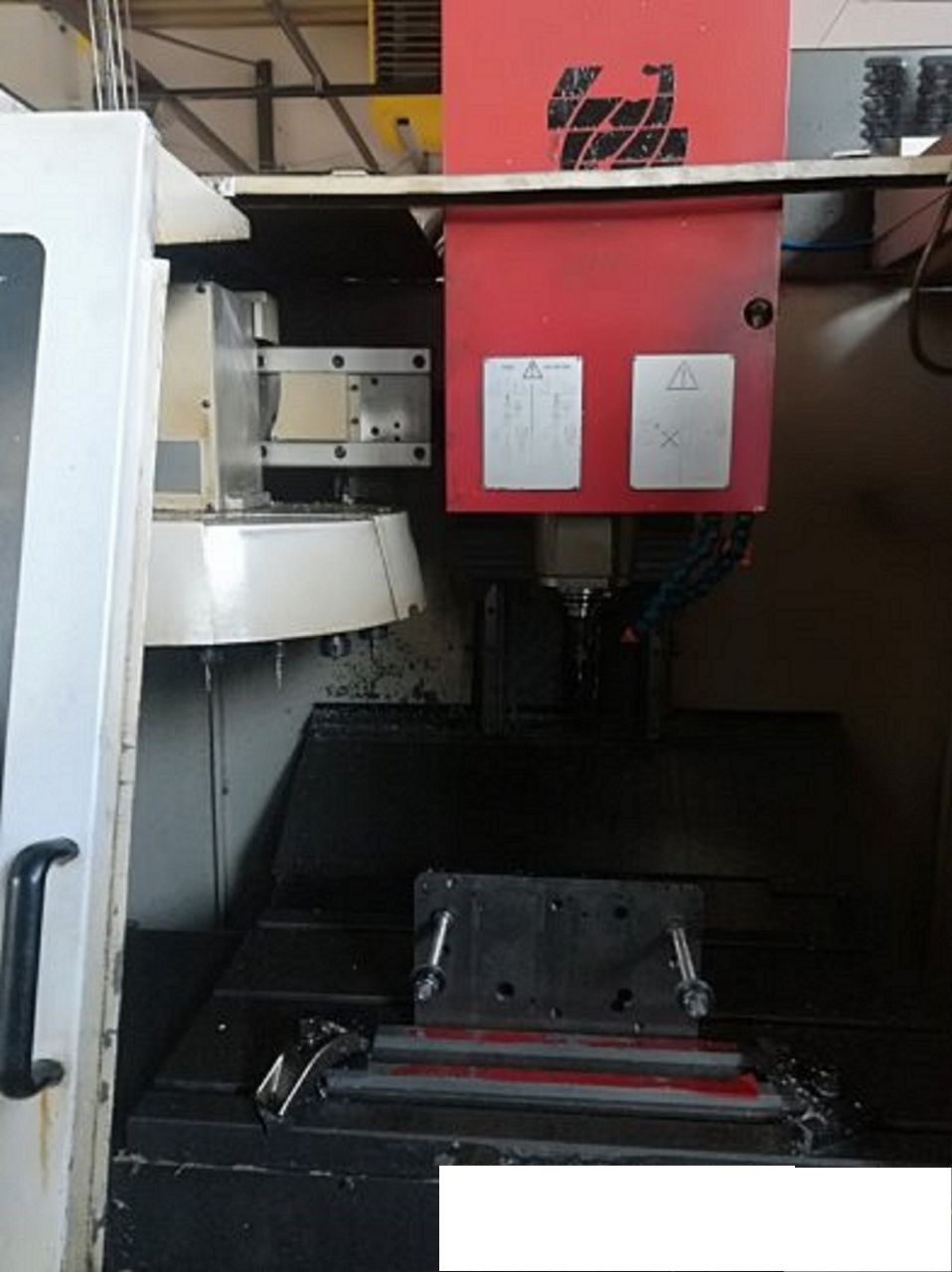

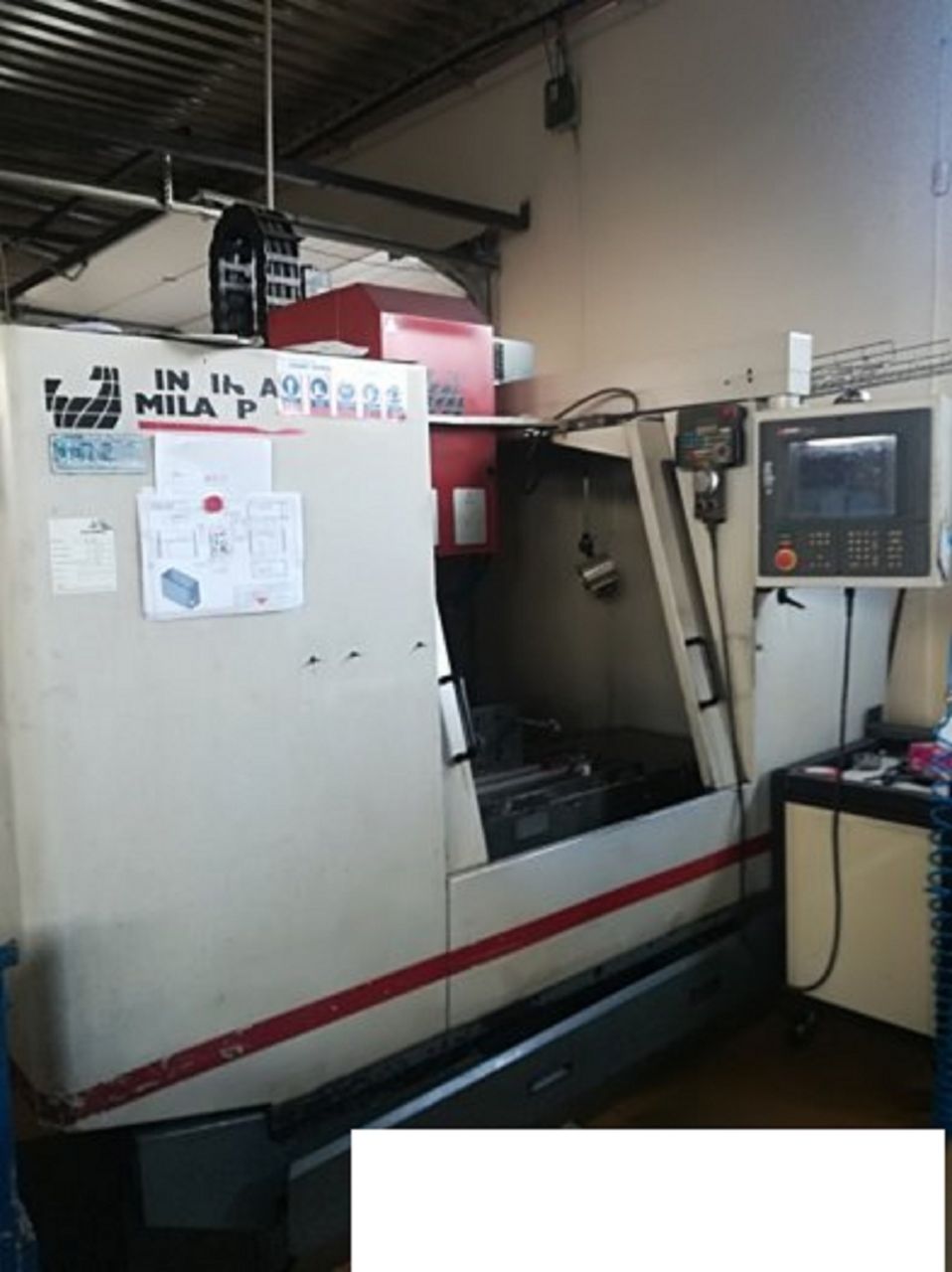

CNC Vertical Machining Center CINCINNATI ARROW VMC 750
| Net price | Ask› |
| Company name |
AMARON s.r.o. (Ltd.)
M. Naji |
| Address | info@amaron-trading.com |
| City | Brno |
| Post code | 602 00 |
| Country | Czech Republic |
| Telephone |
+420 542 210 850
+420 776 115 345 |
| Category | CNC Milling Machines and Machining Centers CINCINNATI › |
| Manufacturer | CINCINNATI › |
CNC Vertical Machining Center CINCINNATI ARROW VMC 750 was manufactured by the machine manufacturer CINCINNATI. Machine CINCINNATI ARROW VMC 750 was built in 1999 year.
General data | |
|---|---|
| Location | Czech Republic |
| Year of manufacture | 1999 |
| Warranty | Without warranty |
| Technical condition | Good |
| Payment | Before receipt |
| Transport | The seller organizes the transport at a surcharge |
Technical parameters | |
|---|---|
| Length of the working table | 950 mm |
| Width of the working table | 520 mm |
| Maximum table load (evenly distributed) | 450 kg |
| Power of the spindle drive | 9 kW |
| Number of tools in the magazine | 21 pcs |
| Maximum rotary speed of the vertical spindle | 6000 1/min |
| Travel length X-axis (mechanical feed) | 760 mm |
| Travel length Y-axis (mechanical feed) | 510 mm |
| Travel length Z-axis (mechanical feed) | 510 mm |
| Machine height | 2700 mm |
| Machine length | 2800 mm |
| Machine width | 2920 mm |
| Machine weight | 5.5 t |
Equipment | |
|---|---|
| no data | |
