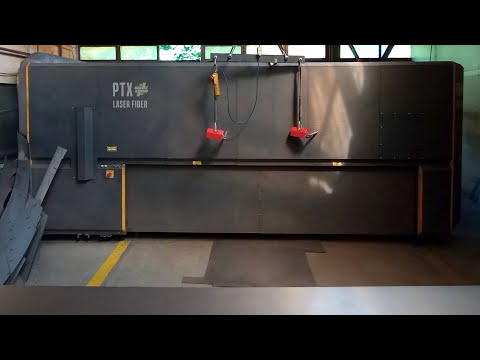

2D Laser PTX X-1
2D Laser PTX X-1 was manufactured by the machine manufacturer PTX. Machine PTX X-1 was built in 2019 year.
General data | |
|---|---|
| Location | Poland |
| region | Dolnośląskie |
| Year of manufacture | 2019 |
| Warranty | Without warranty |
| Technical condition | Very good |
| Payment | Before receipt |
| Transport | The buyer organizes the transport at his own cost |
Technical parameters | |
|---|---|
| Laser power | 1.5 kW |
| Length of the working table | 3000 mm |
| Width of the working table | 1500 mm |
| Maximum table load (evenly distributed) | 3200 kg |
| Maximum thickness of the cut sheet metal (Normal Steel) | 10 mm |
| Maximum thickness of the cut sheet metal (Stainless Steel) | 4 mm |
| Maximum thickness of the cut sheet metal (Aluminum) | 1.5 mm |
| Travel length X-axis | 150 mm |
| Accuracy of positioning | 0.005 mm |
| Total power demand | 12 kW |
| Machine height | 2100 mm |
| Machine length | 5800 mm |
| Machine width | 2800 mm |
| Machine weight | 4.8 t |
Equipment | |
|---|---|
| CNC control | |
| Servo drive for the x-axis | |
| Servo drive for the y-axis | |
| Servo drive for the Z-axis | |
| Exhaust extractor | |
